Figure 1. Sunrise on
Pluto with New Horizons: a
once-in-a-lifetime view of the dwarf planet’s icy mountains and plains.
------------------------------
During the year just ended, our own Solar System made the biggest headlines in astronomy and space exploration. At the top of the list were the amazing images and detailed physical data returned by the New Horizons mission to the double-dwarf system of Pluto and Charon (Stern et al. 2015). Close behind were the data sent back from Ceres by the Dawn spacecraft. Then came evidence from various sources elsewhere
in our system for liquid water, whether flowing on the surface of Mars
or sloshing in a global ocean beneath the ice shell of Enceladus (Thomas et al. 2015). Extrasolar astronomy offered nothing comparable.
Yet the growth in our evidence for exoplanets – near and far, individually and in systems, at the present epoch and across galactic history – continued at a rapid pace in 2015. In November, the exoplanetary census maintained by the Extrasolar Planets Encyclopaedia passed 2000. Today it stands at 2041: double the count registered just two years ago, and an order of magnitude larger than the census in 2006. Most exoplanets (62%) are known by the shadows they cast while crossing the face of their parent stars, through the so-called transit method. Those in the next largest sample (31%) were revealed by their gravitational effects on the spectral lines of their parent stars, as shown by radial velocity observations. The remainder were found variously by direct imaging, microlensing, and pulsation timing.
As 2016 begins, the astronomical community is still digesting the massive haul of data collected by the primary Kepler mission from 2009 to 2013, even as new discoveries by K2 (Kepler’s successor) and other programs continue to accumulate. This posting will highlight some of the most remarkable extrasolar detections of the past year, focusing on contributions to our understanding of planet structure, planet formation, and system architectures. Then we’ll glance at a few other important studies of a more theoretical nature.
Figure 2. Aldebaran
Yet the growth in our evidence for exoplanets – near and far, individually and in systems, at the present epoch and across galactic history – continued at a rapid pace in 2015. In November, the exoplanetary census maintained by the Extrasolar Planets Encyclopaedia passed 2000. Today it stands at 2041: double the count registered just two years ago, and an order of magnitude larger than the census in 2006. Most exoplanets (62%) are known by the shadows they cast while crossing the face of their parent stars, through the so-called transit method. Those in the next largest sample (31%) were revealed by their gravitational effects on the spectral lines of their parent stars, as shown by radial velocity observations. The remainder were found variously by direct imaging, microlensing, and pulsation timing.
As 2016 begins, the astronomical community is still digesting the massive haul of data collected by the primary Kepler mission from 2009 to 2013, even as new discoveries by K2 (Kepler’s successor) and other programs continue to accumulate. This posting will highlight some of the most remarkable extrasolar detections of the past year, focusing on contributions to our understanding of planet structure, planet formation, and system architectures. Then we’ll glance at a few other important studies of a more theoretical nature.
Figure 2. Aldebaran
The red
giant Aldebaran appears left of center as a foreground object against members
of the more distant Hyades Cluster. Also known as Alpha Tauri, Aldebaran is
only about 20 parsecs away, while the distance to the Hyades is about 46
parsecs. Twenty-five years of radial velocity observations support the presence
of a massive gas giant planet orbiting Aldebaran in a period of 629 days. Image
credit: Wikipedia
----------
Aldebaran is one
of the brightest stars in northern skies, visible even in light-polluted
environments (Figure 2). Its brightness is explained partly by its evolutionary
status as a red giant of spectral type K5 III and partly by its proximity to
Earth: it’s located just 66 light years away (20.4 parsecs). Back in 1993, when
extrasolar planets were still science fiction, Artie Hatzes and William
Cochrane reported six years of data demonstrating regular variations in the
radial velocities of Aldebaran and two other nearby red giants, Arcturus and
Pollux. As Hatzes & Cochrane noted at the time, “The exciting possibility
that the variations are due to the presence of planetary companions should be
treated with caution.” A planet around Pollux was eventually confirmed more than
a decade later, in 2006. It’s a gas giant of 2.3 Jupiter masses (Mjup) orbiting
at a semimajor axis of 1.6 AU (a little wider than the orbit of Mars). Although
Arcturus is still awaiting confirmation, good tidings came from Aldebaran this
past summer in the form of a Super Jupiter with an orbit similar to that of
Pollux b (Hatzes et al. 2015). Details on the new system appear in Table 1.
In an era when splashy claims are sometimes rushed into press, only to be refuted within a few years, Hatzes & colleagues have upheld the most exacting scientific standards. They collected and analyzed data on Aldebaran b for more than 25 years – equivalent to about 15 planetary orbits – before ultimately confirming its reality. Their publications on this project over the past two decades offer a window on our progress in understanding nearby stars. When they reported their early findings, Pollux and Aldebaran were credited with respective masses of 2.8 and 2.5 Msol, and these values informed estimates of planetary masses. Since then, the numbers have been revised dramatically downward to 1.7 and 1.1 Msol, respectively. Evidently Pollux is a “retired A star” (Johnson et al. 2011), but Aldebaran seems to have begun its existence as a Sun-like star. Among planet-hosting red giants, which now number at least 60, that origin puts it in the minority.
In an era when splashy claims are sometimes rushed into press, only to be refuted within a few years, Hatzes & colleagues have upheld the most exacting scientific standards. They collected and analyzed data on Aldebaran b for more than 25 years – equivalent to about 15 planetary orbits – before ultimately confirming its reality. Their publications on this project over the past two decades offer a window on our progress in understanding nearby stars. When they reported their early findings, Pollux and Aldebaran were credited with respective masses of 2.8 and 2.5 Msol, and these values informed estimates of planetary masses. Since then, the numbers have been revised dramatically downward to 1.7 and 1.1 Msol, respectively. Evidently Pollux is a “retired A star” (Johnson et al. 2011), but Aldebaran seems to have begun its existence as a Sun-like star. Among planet-hosting red giants, which now number at least 60, that origin puts it in the minority.
Table 1. Parameters of the Aldebaran system
For Aldebaran (the host star), column 1 =
mass in Solar units; column 2 = radius in Solar units; column 3 = metallicity
as the ratio of iron to hydrogen; column 4 = effective temperature in Kelvin,
column 5 = age in billions of years; column 6 = spectral type, column 7 =
distance in parsecs. For Aldebaran b (the planet), column 1 = mass in Jupiter
units; column 2 = orbital semimajor axis in astronomical units; column 3 =
orbital eccentricity; column 4 = orbital period in days.
-----------------------------------
EPIC
210490365 Aldebaran is the right eye of the bull in the zodiacal
constellation of Taurus. It’s surrounded by bluer, dimmer stars that trace the
rest of the bull’s face (Figure 2). All the other stars comprise a completely
unrelated structure known as the Hyades Cluster, which at 44 parsecs is more
distant than Aldebaran, though still quite nearby in Galactic terms. The Hyades
are also much younger than Aldebaran, representing stars of all colors born in a
single hydrogen cloud about 650 million years ago. Data collected by the K2
Mission reveal that one member of the cluster – a red dwarf of type M4.5 with a
fiendishly unmemorable catalog number – is accompanied by a gas
dwarf of 3.43 Earth radii (Rea)
transiting every 3.5 days (Mann et al. 2015). Given its membership in the
Hyades Cluster, the host star’s characteristics are well constrained (0.29
Msol, [Fe/H] +0.15), but no data are available on the new planet’s mass.
Despite the cluster’s proximity and size (at least 200 star systems), EPIC 210490365b is only the third exoplanet ever detected in the Hyades. The first was a Super Jupiter of 7.5 Mjup orbiting the red giant Epsilon Tauri (the bull’s left eye) in a period of 595 days (Sato et al. 2007). The second was a Hot Jupiter of 0.92 Mjup orbiting HD 285507 (spectral type K4.5, 0.73 Msol) in a period of 6 days (Quinn et al. 2013). Two more giant planets – both Hot Jupiters – have been reported around Sun-like stars in another nearby cluster, Praesepe, which shares a common origin with the Hyades (Quinn et al. 2012). Finally, Kepler Mission data revealed two low-mass planets (Kepler-66b and -67b; Meibom et al. 2013) transiting G-type stars in NGC 6811, a star cluster aged about 1 billion years located 1107 parsecs away (3600 light years). With respective radii of 2.8 and 2.9 Rea, Kepler-66b and Kepler-67b appear typical of the large population of puffy Kepler planets with hydrogen/helium atmospheres and masses between 2 and 12 Mea. The new Hyades gas dwarf reported by Mann & colleagues has an even puffier profile, although it isn’t necessarily more massive. It’s the third low-mass planet detected in any star cluster and the first to be identified in the Hyades.
Figure 3. Bright stars within 15 parsecs of the center of the Hyades Cluster
The x-axis shows right ascension; the y-axis
shows declination. The position of EPIC
210490365 is marked by a red six-pointed star at RA 04:13:06, Dec +15:14:52
Except for this M dwarf exoplanet host, only stars of type K or earlier appear
in the diagram, color-coded by spectral classification. A halo around a star
indicates multiplicity. The inner dot-dashed circle traces the cluster’s core
radius (2.7 parsecs); the outer circle shows the tidal radius (10 parsecs). To
date, three exoplanetary systems have been identified in the Hyades Cluster.
---------------
HD 219134 is still
closer than Aldebaran and the Hyades, located just 21 light years (6.53
parsecs) away. With an enhanced metallicity of +0.11, this orange dwarf has
long been considered a potential planetary host. Its spectral type of K3 (not
too dim) and mass of 0.78 Msol (not too small) add to its appeal. This past
year, two different groups (Motalebi et al., Vogt et al.) reported a
fascinating system around this star, including at least three low-mass planets
on short-period orbits and one cool gas giant orbiting outside 2 AU. Motalebi’s
group even reported the detection of a single transit of the innermost planet
(HD 219134 b), a likely Super Earth. If this transit is confirmed, the planet
in question will join an exclusive club of small exoplanets with measured
masses and radii. This system is discussed in more detail here and here.
Kepler-138 The club
of small planets with measured masses inducted several new members over the
past year, including three from the same system. Analyses of transit data on a
faint M dwarf known as Kepler-138, located at an unspecified distance, enabled
the characterization of three undeniably terrestrial planets with orbital
periods between 10 and 23 days. The host star has an estimated mass of 0.52
Msol and metallicity of -0.28. Analyses of transit timing variations enabled Jontof-Hutter
& colleagues to calculate masses for all three planets, revealing a
startling mismatch in densities.

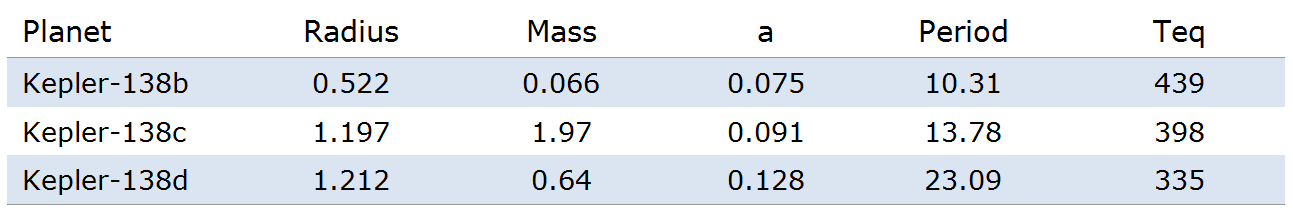

Table 2. Parameters of the Kepler-138 system
Table 2. Parameters of the Kepler-138 system
Masses & radii are shown in Earth units;
semimajor axis (a) in astronomical units (AU); period in days; and equilibrium temperature
(Teq) in Kelvin.
---------------
Kepler-138b is a rare example of a subterrestrial exoplanet, almost identical to Mars
in radius but even less massive. Despite its much larger radius, Kepler-138d is
another subterrestrial; it is less massive than Venus. Both of these objects
must include a volatile component (presumably water) to explain their
unexpectedly large radii. Only Kepler-138c is a bona fide Super Earth, with an
estimated mass that implies an Earth-like composition. Of course, all three
planets are much hotter than Earth.
Kepler-444 Yet
another remarkable system of small planets was announced at the beginning of
2015 (Campante et al.). Instead of its unprecedented architecture, though, the
headlines emphasized the system’s advanced age: at an estimated 11.2 billion
years, the host star is just a little younger than the Milky Way itself. As
expected of such an ancient star, Kepler-444 is poor in metals, with [Fe/H] at
-0.55. Nevertheless, it harbors five tightly packed, slow-roasted planets with
a likely aggregate mass of 1.5 Mea – rather less than the total mass of the
Solar System’s four terrestrial planets. All these objects are “Martians,” with
radii larger than Mercury but smaller than Venus, and all are expected to be
purely rocky and blazing hot, lacking volatiles. Even such dense objects are
still too lightweight to be detected by radial velocity surveys, despite the
brightness and proximity of the parent star. In fact, Kepler-444 is one of the
closest stars in the entire Kepler sample, located just 35.7 parsecs away (116
light years). Its respectable mass of o.76 Msol and spectral type of K0 have
enabled unusually precise estimates of system parameters, as summarized in
Table 3.

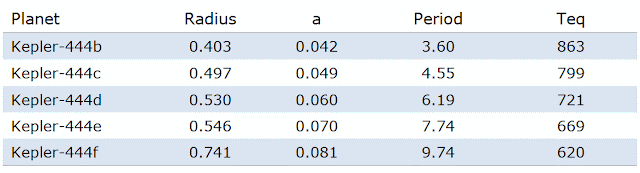

Table 3. Parameters
of the Kepler-444 system
Radii are shown in Earth units; semimajor
axis (a) in astronomical units (AU); period in days; and equilibrium
temperature (Teq) in Kelvin.
---------------
Campante & colleagues noted that all adjacent
planet pairs in this system orbit just outside first-order mean motion
resonances, suggesting that they migrated into their present configuration in
the presence of a protoplanetary nebula. The orbits are also almost perfectly
co-planar, consistent with dynamic stability over the lifetime of the Galaxy.
Adding to the intricacy of this celestial clockwork is the fact that Kepler-444 itself is the primary or “A” component of a hierarchical triple star system. Its companions, Kepler-444B and C, are M dwarfs with respective masses of 0.29 and 0.25 Msol. They are locked in a tight binary orbit with a semimajor axis of 0.3 AU or less. Currently, the binary is separated from Kepler-444A by a projected distance of about 66 AU. A new study by Dupuy & colleagues reports astrometric and radial velocity data on all three stars, arguing that the binary is engaged in a highly eccentric orbit around the system’s center of mass, sharing a semimajor axis of 36.7 AU and an eccentricity of 0.864 with Kepler-444A. These values imply that the BC binary and the A star have a minimum separation of 5 AU at each periastron passage during their shared orbital period of about 200 years. Such an orbit would seem to compromise the long-term survival of the planetary system, but Dupuy & colleagues argue that both the planetary and stellar orbits are co-planar, promoting dynamical stability over the age of the Milky Way.
WASP-47 has been recognized as the host of an “entirely typical” Hot Jupiter since 2012. Located at a distance of about 200 parsecs, it’s a G-type star of 1.04 Msol with substantial enrichment in metals, given its [M/H] of +0.36. New data from two different sources – the spaceborne K2 Mission and the ground-based CORALIE program – now portray a unique mixed-mass system (Becker et al. 2015) that is already the focus of theoretical efforts to explain its singular architecture. Two short-period, low-mass planets were announced this summer, one inside and the other outside the orbit of the known Hot Jupiter (WASP-47b). Shortly afterward, a second gas giant (WASP-47c) was reported at a semimajor axis of 1.36 AU (Neveu-VanMalle et al. 2015).
Figure 4. The three inner planets of WASP-47
Adding to the intricacy of this celestial clockwork is the fact that Kepler-444 itself is the primary or “A” component of a hierarchical triple star system. Its companions, Kepler-444B and C, are M dwarfs with respective masses of 0.29 and 0.25 Msol. They are locked in a tight binary orbit with a semimajor axis of 0.3 AU or less. Currently, the binary is separated from Kepler-444A by a projected distance of about 66 AU. A new study by Dupuy & colleagues reports astrometric and radial velocity data on all three stars, arguing that the binary is engaged in a highly eccentric orbit around the system’s center of mass, sharing a semimajor axis of 36.7 AU and an eccentricity of 0.864 with Kepler-444A. These values imply that the BC binary and the A star have a minimum separation of 5 AU at each periastron passage during their shared orbital period of about 200 years. Such an orbit would seem to compromise the long-term survival of the planetary system, but Dupuy & colleagues argue that both the planetary and stellar orbits are co-planar, promoting dynamical stability over the age of the Milky Way.
WASP-47 has been recognized as the host of an “entirely typical” Hot Jupiter since 2012. Located at a distance of about 200 parsecs, it’s a G-type star of 1.04 Msol with substantial enrichment in metals, given its [M/H] of +0.36. New data from two different sources – the spaceborne K2 Mission and the ground-based CORALIE program – now portray a unique mixed-mass system (Becker et al. 2015) that is already the focus of theoretical efforts to explain its singular architecture. Two short-period, low-mass planets were announced this summer, one inside and the other outside the orbit of the known Hot Jupiter (WASP-47b). Shortly afterward, a second gas giant (WASP-47c) was reported at a semimajor axis of 1.36 AU (Neveu-VanMalle et al. 2015).
Figure 4. The three inner planets of WASP-47
The three transiting planets of WASP-47 are
shown at their relative sizes. The number inside each sphere refers to the
planet’s estimated mass in Earth units (Mea). The value for planet e is a guesstimate
within narrow limits; the other two are supported by radial velocity and
transit timing data. A second gas giant planet (WASP-47c) is also present on a wider orbit outside the scale of this diagram.
----------
Still
more recently, two theoretical studies that appeared as preprints offer
findings relevant to the system’s evolution. The first, by Batygin &
colleagues, proposes that the three inner planets of WASP-47 formed in situ, although it’s not clear how one
of them ballooned into a giant while the other two stayed small. The second, by
Hand & Alexander, reports the results of a suite of simulations of
migration scenarios for systems of compact short-period planets. In their simulations,
whole families of small planets assemble outside system snow lines and then
migrate inward to warmer orbits. If the outermost or penultimate planet
accretes enough mass during this process to grow into a gas giant (the growth mechanism
is unclear), it will sculpt the orbits of the smaller inner planets in various
ways. In extreme cases, the low-mass planets are ejected from the system or
driven into the star. In more peaceful iterations, the gas giant squeezes the
inner planets into extremely tight orbits, as we see in Kepler-90.
Hand & Alexander also suggest that some compact low-mass systems harbor
invisible giants on wider orbits (a notion conveyed in their title, "There Might Be Giants"). Their celebrity candidate for such a
configuration is Kepler-11, but a similar scenario could also be applied to WASP-47, where the outer giant is actually visible.
Two Baby
Giants from HATS Low-mass planets like Earth and Uranus have bulk compositions
dominated by heavy elements, whereas gas giant planets like Saturn and Jupiter consist
primarily of hydrogen. But the boundary between the two species is imprecise.
Remarkably, a program other than Kepler or K2 recently contributed critical new
data on this issue. The Hungarian Automated Telescope Network South, better
known as HATS, reported two transiting planets, HATS-7b and HATS-8b, that appear
transitional between the dwarfs and the giants. Although the two planets are similar
in mass, they differ widely in radius and composition.
HATS-7b orbits a metallic K-type star in a period of 3.2 days (Bakos et al. 2015). Transit observations yield a radius of 6.31 Rea; radial velocity data provide a mass of 38.2 Mea. The bulk composition favored by the discovery team is about 82% rock/metal and 18% hydrogen/helium – broadly similar to the composition of Uranus. They note that the minimum mass for a heavy element core that is consistent with the planet’s radius is 25 Mea – much higher than any purely rocky planet ever detected.
HATS-8b follows a similar orbit (3.5 days) around a metallic G-type star (Bayliss et al. 2015). At 43.9 Mea, this planet is less than half as massive as Saturn (95 Mea), but its puffy radius of 9.79 Rea makes it slightly larger. The discovery team suggests a hydrogen/helium envelope accounting for about 77% of its bulk composition. The corresponding heavy element core of about 10 Mea is predicted by current models of gas giant formation.
These two HATS join at least two previously reported objects that lie just at the threshold of the mass range typical of gas giant planets. They are Kepler-35b, which has a mass of 40 Mea, a radius of 8.16 Rea, and an orbital period of 131 days; and HAT-P-18b, which has a mass of 58 Mea, a radius of 10.6 Rea, and an orbital period of 5.5 days.
HATS-7b orbits a metallic K-type star in a period of 3.2 days (Bakos et al. 2015). Transit observations yield a radius of 6.31 Rea; radial velocity data provide a mass of 38.2 Mea. The bulk composition favored by the discovery team is about 82% rock/metal and 18% hydrogen/helium – broadly similar to the composition of Uranus. They note that the minimum mass for a heavy element core that is consistent with the planet’s radius is 25 Mea – much higher than any purely rocky planet ever detected.
HATS-8b follows a similar orbit (3.5 days) around a metallic G-type star (Bayliss et al. 2015). At 43.9 Mea, this planet is less than half as massive as Saturn (95 Mea), but its puffy radius of 9.79 Rea makes it slightly larger. The discovery team suggests a hydrogen/helium envelope accounting for about 77% of its bulk composition. The corresponding heavy element core of about 10 Mea is predicted by current models of gas giant formation.
These two HATS join at least two previously reported objects that lie just at the threshold of the mass range typical of gas giant planets. They are Kepler-35b, which has a mass of 40 Mea, a radius of 8.16 Rea, and an orbital period of 131 days; and HAT-P-18b, which has a mass of 58 Mea, a radius of 10.6 Rea, and an orbital period of 5.5 days.
Theory of
Small Planets
The sample of Mars- to Super Earth-size planets grew
significantly in 2015. These objects consist entirely of heavy elements and are
appropriately described as terrestrial. A selection appears in Figure 5. Although
exoplanets in this mass range (0.05–10 Mea) are known mostly through transit
observations, the full population of transiting planets is dominated by puffy gas
dwarfs with hydrogen/helium envelopes and radii of 2–4 Rea. In contrast, as
discussed in previous
posts, most terrestrial
planets in the Galaxy must be smaller than 2 Rea.
This population attracted considerable attention in the past year, especially the subset with masses measured by transit timing or radial velocity variations. Notable studies of small planets either published or in press in 2015 include Dawson, Chiang & Lee, A metallicity recipe for rocky planets; Dressing et al., The mass of Kepler-93b and the composition of terrestrial planets; Howe & Burrows, Evolutionary models of Super Earths and Mini Neptunes incorporating cooling and mass loss; Jontof-Hutter, Ford, et al., Robust TTV mass measurements: Ten Kepler exoplanets between 3 and 8 Mea; Owen & Wu, Atmospheres of low-mass planets: The Boil-Off; Rogers, Most 1.6 Earth-radius exoplanets are not rocky; and Unterborn et al., Scaling the Earth. Bibliographic details appear in the reference section below.
Figure 5. Terrestrial planets near and far with measured masses and radii
This population attracted considerable attention in the past year, especially the subset with masses measured by transit timing or radial velocity variations. Notable studies of small planets either published or in press in 2015 include Dawson, Chiang & Lee, A metallicity recipe for rocky planets; Dressing et al., The mass of Kepler-93b and the composition of terrestrial planets; Howe & Burrows, Evolutionary models of Super Earths and Mini Neptunes incorporating cooling and mass loss; Jontof-Hutter, Ford, et al., Robust TTV mass measurements: Ten Kepler exoplanets between 3 and 8 Mea; Owen & Wu, Atmospheres of low-mass planets: The Boil-Off; Rogers, Most 1.6 Earth-radius exoplanets are not rocky; and Unterborn et al., Scaling the Earth. Bibliographic details appear in the reference section below.
Figure 5. Terrestrial planets near and far with measured masses and radii
These imaginative renderings of eight
well-studied extrasolar planets appear alongside photographs of Mercury, Venus,
and Earth. All are represented at their relative sizes, with masses (Mea) and
radii (Rea) indicated in Earth units. 55 Cancri e is assigned the new radius
reported by Demory et al. 2015, who speculate that this Hellworld experiences frequent
volcanic eruptions. Three of the exoplanets shown here (55 Cancri e,
Kepler-10b, Kepler-78b) complete a single orbit in less than 24 hours.
Twenty Years
of Hot Jupiters
2015 was the 20th anniversary of the discovery of the
first Hot Jupiter, 51 Pegasi b. A Hot Jupiter is a gas giant planet that orbits
its parent star in a period shorter than 10 days. Before 51 Pegasi b was
announced, few people even dreamed that such planets were possible. Now about 300 are known.
Theorists have been trying to explain these unexpected objects ever since the initial detections. Until recently, all theories assumed that they formed outside their system ice lines (at about 2 AU or so) and were then transported somehow to their present hot orbits. Proposed mechanisms included 1) migration by interaction with the primordial gas nebula (Type II migration); 2) migration by gravitational interactions with another gas giant in the same system, either during a brief period of dynamic instability or by long-term perturbations through so-called Kozai cycles; and 3) migration by gravitational interactions with a misaligned stellar companion of the host star in another type of Kozai regime.
The first mechanism has generally been the most popular, in part because it doesn’t depend on assuming the past or present existence of a potentially undetected (and possibly undetectable) companion planet or star. If Type II migration is indeed the dominant delivery mechanism for Hot Jupiters, then we would expect all Hot Jupiters that took this pathway to follow orbits that are well-aligned with the spin axis of their parent stars.
However, orbital misalignment appears to be quite common among transiting Hot Jupiters (the only subset in which this phenomenon can be observed). Accordingly, a team of astronomers launched the “Friends of Hot Jupiter” study to test whether one of the other two mechanisms might be responsible for most of this population. They selected a sample of 50 Hot Jupiters in two subgroups: 23 with well-aligned orbits and 27 with misaligned orbits.
The results of this impressive program have now been published in three successive articles. The first, by Knutson et al., appeared in 2014. This installment returned the remarkable finding that half of the systems in each group revealed radial velocity evidence for a second gas giant on a wider orbit. Some of these were already known, but almost half were newly determined through radial velocity trends. Nevertheless, analyses found no statistically significant association between evidence for an outer giant and the alignment of the known Hot Jupiter.
The second and third installments appeared in 2015; both involved searches for companion stars in Hot Jupiter systems (Ngo et al., Piskorz et al.) Although about half the host stars in the sample showed evidence of a binary companion, the presence or absence of such a companion had no association with the orbital alignment of the Hot Jupiter. The authors also noted that Hot Jupiters appear to reside preferentially in binary systems, despite the indifference of alignment to binarity.
If nothing else, the Friends of Hot Jupiters seem to have falsified the claim that stellar Kozai cycles are the primary cause of observed misalignments in transiting giants. Where exactly Hot Jupiters form and how exactly they got where they are now, however, remain open questions.
Happy New Year!
Figure 6. The sample of Hot Jupiters studied by Sing & colleagues
Theorists have been trying to explain these unexpected objects ever since the initial detections. Until recently, all theories assumed that they formed outside their system ice lines (at about 2 AU or so) and were then transported somehow to their present hot orbits. Proposed mechanisms included 1) migration by interaction with the primordial gas nebula (Type II migration); 2) migration by gravitational interactions with another gas giant in the same system, either during a brief period of dynamic instability or by long-term perturbations through so-called Kozai cycles; and 3) migration by gravitational interactions with a misaligned stellar companion of the host star in another type of Kozai regime.
The first mechanism has generally been the most popular, in part because it doesn’t depend on assuming the past or present existence of a potentially undetected (and possibly undetectable) companion planet or star. If Type II migration is indeed the dominant delivery mechanism for Hot Jupiters, then we would expect all Hot Jupiters that took this pathway to follow orbits that are well-aligned with the spin axis of their parent stars.
However, orbital misalignment appears to be quite common among transiting Hot Jupiters (the only subset in which this phenomenon can be observed). Accordingly, a team of astronomers launched the “Friends of Hot Jupiter” study to test whether one of the other two mechanisms might be responsible for most of this population. They selected a sample of 50 Hot Jupiters in two subgroups: 23 with well-aligned orbits and 27 with misaligned orbits.
The results of this impressive program have now been published in three successive articles. The first, by Knutson et al., appeared in 2014. This installment returned the remarkable finding that half of the systems in each group revealed radial velocity evidence for a second gas giant on a wider orbit. Some of these were already known, but almost half were newly determined through radial velocity trends. Nevertheless, analyses found no statistically significant association between evidence for an outer giant and the alignment of the known Hot Jupiter.
The second and third installments appeared in 2015; both involved searches for companion stars in Hot Jupiter systems (Ngo et al., Piskorz et al.) Although about half the host stars in the sample showed evidence of a binary companion, the presence or absence of such a companion had no association with the orbital alignment of the Hot Jupiter. The authors also noted that Hot Jupiters appear to reside preferentially in binary systems, despite the indifference of alignment to binarity.
If nothing else, the Friends of Hot Jupiters seem to have falsified the claim that stellar Kozai cycles are the primary cause of observed misalignments in transiting giants. Where exactly Hot Jupiters form and how exactly they got where they are now, however, remain open questions.
Happy New Year!
Figure 6. The sample of Hot Jupiters studied by Sing & colleagues
This pretty array of Hot Jupiters was
published at the start of the holiday season, calling to mind a set of
ornaments for a cosmic Christmas tree. The image illustrates a study by Sing
and colleagues, who conducted a spectroscopic search for water in Hot Jupiter
atmospheres.
-------------
REFERENCES
Bakos GA, Penev K, Bayliss D, Hartman JD, Zhou G,
Brahm R, and 22 others. (2016) HATS-7b: A hot Super Neptune transiting a quiet
K dwarf star. Astrophysical Journal
813, 111. Abstract: 2015ApJ...813..111B
Batygin K, Laughlin G. (2015) Jupiter’s decisive role in the
inner Solar System’s early evolution. Proceedings
of the National Academy of Sciences 112, 4214-4217. Abstract: 2015PNAS..112.4214B
Batygin K, Bodenheimer P, Laughlin G. (2015) In situ formation and dynamical
evolution of Hot Jupiter systems. In press. Abstract: 2015arXiv151109157B
Bayliss
D, Hartman JD, Bakos GA, Penev
K, Zhou G, Brahm R, and 20 others. (2015) HATS-8b: A low-density transiting
Super-Neptune. Astronomical Journal
150, 49.
Becker
J, Vanderburg A, Adams F,
Rappaport S, Schwengler H. (2015) WASP-47: A Hot Jupiter system with two
additional planets discovered by K2. Astrophysical
Journal Letters 812, L18. Abstract: 2015ApJ...812L..18B
Campante TL, Barclay T, Swift JJ, Huber D, Adibekyan V, Cochran W, et al. (2015) An ancient extrasolar system with five sub-Earth size planets. Astrophysical Journal 799, 170.
Dawson RI, Chiang E, Lee EJ. (2015) A metallicity recipe for rocky planets. Monthly Notices of the Royal Astronomical Society 453, 1471-1483. Abstract: 2015MNRAS.453.1471D
Dawson RI, Chiang E, Lee EJ. (2015) A metallicity recipe for rocky planets. Monthly Notices of the Royal Astronomical Society 453, 1471-1483. Abstract: 2015MNRAS.453.1471D
Demory B-O, Gillon M, Madhusudhan N, Queloz D. (2015) Variability in the super-Earth 55Cnc
e. Monthly Notices of the Royal
Astronomical Society 455, 2018-2027. Abstract: 2016MNRAS.455.2018D
Dressing CD, Charbonneau D, Dumusque X, Gettel S, Pepe
F, Cameron AC, et al. (2015) The mass of Kepler-93b and the composition of
terrestrial planets. Astrophysical
Journal 800, 135. Abstract: 2015ApJ...800..135D
Dupuy
TJ, Kratter KM, Kraus AL,
Isaacson H, Mann AW, Ireland MJ, Howard AW, Huber D. (2015) Orbital
architectures of planet-hosting binaries: I. Forming five small planets in the
truncated disk of Kepler-444A. In press. Abstract: 2015arXiv151203428D
Gomes R, Levison HF,
Tsiganis K, Morbidelli A. (2005) Origin of the cataclysmic Late Heavy
Bombardment period of the terrestrial planets. Nature 435, 466-469. Abstract:
2005Natur.435..466G
Hands TO, Alexander RD. (2015) There might be giants: unseen Jupiter-mass planets as sculptors
of tightly-packed planetary systems. Monthly Notices of
the Royal Astronomical Society. In press.
Abstract: 2015arXiv151202649H
Hatzes AP, Cochran
WD.
(1992) Long-period radial velocity variations in three K giants. Astrophysical Journal 413, 339-348.
Hatzes AP, Cochran WD. (1998) On the nature of the radial
velocity variability of Aldebaran: a search for spectral line bisector
variations. Monthly Notices of the Royal
Astronomical Society 293, 469-478.
Hatzes AP, Cochran WD, Endl M, Guenther EW, Saar SH,
Walker G, et al. (2006) Confirmation of the planet hypothesis for the
long-period radial velocity variations of Beta Geminorum. Astronomy & Astrophysics 457, 335-341.
Hatzes AP, Cochran WD, Endl M, Guenther EW, MacQueen
PJ, Hartmann M, et al. (2015) Long-lived, long-period radial velocity
variations in Aldebaran: A planetary companion and stellar activity. Astronomy & Astrophysics 580, A31. 2015A&A...580A..31H
Howe AR, Burrows A. (2015) Evolutionary models of
Super-Earths and Mini-Neptunes incorporating cooling and mass loss. Astrophysical Journal 808, 150. Abstract:
2015ApJ...808..150H
Johnson JA, Clanton C, Howard AW, Bowler BP, Henry GW,
Marcy GW, Crepp JR, Endl M, Cochran WD, MacQueen PJ, Wright JT, Isaacson H.
(2011) Retired A stars and their companions. VII. 18 new Jovian planets. Astrophysical Journal Supplement 197,
26.
Jontof-Hutter D, Rowe JF, Lissauer JJ, Fabrycky DC, Ford EB. (2015) The mass of the
Mars-sized exoplanet Kepler-138 b from transit timing. Nature 522, 321-323.
Jontof-Hutter D, Ford EB, Rowe JF, Lissauer JJ, Fabrycky DC,
Van Laerhoven C, Agol E, Deck KM, Holczer T, Mazeh T. (2015) Robust TTV mass measurements: Ten Kepler exoplanets between 3
and 8 Mearth with diverse
densities and incident fluxes. In press. Abstract: 2015arXiv151202003J
Kaib NA, Chambers JE. (2015) The fragility of the terrestrial planets during a giant planet
instability. Monthly Notices of the Royal
Astronomical Society. In press. Abstract: http://arxiv.org/abs/1510.08448
Knutson HA, Fulton BJ, Montet BT, Kao M, Ngo H, Howard
AW, Crepp JR, Hinkley S, Bakos GA, Batygin K, Johnson JA, Morton RD, Muirhead
PS. (2014) Friends of Hot Jupiters I: A radial velocity search for massive,
long-period companions to close-in gas giant planets. Astrophysical Journal 785, 126.
Mann AW, Gaidos E, Mace GN, Johnson MC, Bowler BP, LaCourse D, Jacobs TL,
Vanderburg A, Kraus AL, Kaplan KF, Jaffe DT. (2015) Zodiacal Exoplanets In Time
(ZEIT) I: A Neptune-sized planet orbiting an M4.5 dwarf in the Hyades star
cluster. In press.
Meibom S, Torres G; Fressin F, Latham DW, Rowe JF, et al. (2013) The same frequency of
planets inside and outside open clusters of stars. Nature 499, 55-58.
Moriarty J, Ballard S. (2015) The Kepler dichotomy in planetary
disks: Linking Kepler observables to simulations of late-stage planet
formation. In press. Abstract: 2015arXiv151203445M
Neveu-VanMalle
M, Queloz D, Anderson DR,
Brown D, Collier Cameron A, Delrez L, Díaz RF, Gillon M, Hellier C, Jehin E,
Lister T, Pepe F, Rojo P, Ségransan D, Triaud A, Turner OD, Udry S. (2015) Hot
Jupiters with relatives: discovery of additional planets in orbit around
WASP-41 and WASP-47. Astronomy &
Astrophysics, in press. Abstract: 2015arXiv150907750N.
Ngo H, Knutson HA, Hinkley S, Crepp JR, Bechter EB, Batygin K, Howard AH, Johnson JA, Morton TD, Muirhead PS. (2015) Friends of Hot Jupiters. II. No correspondence between Hot-Jupiter spin-orbit misalignment and the incidence of directly imaged stellar companions. Astrophysical Journal 800, 138.
Owen J, Wu Y. (2015) Atmospheres of low-mass planets: The boil-off. In process. Abstract: 2015arXiv150602049O.
Piskorz D, Knutson HA, Ngo H, Muirhead PS, Batygin K, Crepp JR, Hinkley S, Morton TD. (2015) Friends of Hot Jupiters III: An infrared spectroscopic search for low-mass stellar companions. Astrophysical Journal 814, 148.
Quinn SN, White RJ, Latham DW, Buchhave LA, Cantrell JR, Dahm SE, Furesz G, Szentgyorgyi AH, Geary JC, Torres G, Bieryla A, Berlind P, Calkins MC, Esquerdo GA, Stefanik RP. (2012) Two b’s in the Beehive: The discovery of the first Hot Jupiters in an open cluster. Astrophysical Journal 756, 27. Abstract: 2012ApJ...756L..33Q
Ngo H, Knutson HA, Hinkley S, Crepp JR, Bechter EB, Batygin K, Howard AH, Johnson JA, Morton TD, Muirhead PS. (2015) Friends of Hot Jupiters. II. No correspondence between Hot-Jupiter spin-orbit misalignment and the incidence of directly imaged stellar companions. Astrophysical Journal 800, 138.
Owen J, Wu Y. (2015) Atmospheres of low-mass planets: The boil-off. In process. Abstract: 2015arXiv150602049O.
Piskorz D, Knutson HA, Ngo H, Muirhead PS, Batygin K, Crepp JR, Hinkley S, Morton TD. (2015) Friends of Hot Jupiters III: An infrared spectroscopic search for low-mass stellar companions. Astrophysical Journal 814, 148.
Quinn SN, White RJ, Latham DW, Buchhave LA, Cantrell JR, Dahm SE, Furesz G, Szentgyorgyi AH, Geary JC, Torres G, Bieryla A, Berlind P, Calkins MC, Esquerdo GA, Stefanik RP. (2012) Two b’s in the Beehive: The discovery of the first Hot Jupiters in an open cluster. Astrophysical Journal 756, 27. Abstract: 2012ApJ...756L..33Q
Quinn SN, White RJ, Latham DW, Buchhave LA, Torres G, Stefanik RP, Berlind P,
Bieryla A, Calkins MC, Esquerdo GA, Furesz G, Geary JC, Szentgyorgyi AH. (2014)
HD 285507b: An eccentric Hot Jupiter in the Hyades open cluster. Astrophysical
Journal 787, 27. Abstract: 2014ApJ...787...27Q
Rogers L. (2015) Most 1.6 Earth-radius planets are
not rocky. Astrophysical Journal 801, 41.
Sato B, Izumiura H, Toyota
E, et al. (2007) A planetary companion to the Hyades giant Epsilon Tauri. Astrophysical Journal 661, 527-531. Abstract.
Sing DK, Fortney JJ, Nikolov N, Wakeford HR, Kataria T, et al. (2016) A continuum from clear to cloudy hot-Jupiter exoplanets without primordial water depletion. Nature 529, 59-62.
Sing DK, Fortney JJ, Nikolov N, Wakeford HR, Kataria T, et al. (2016) A continuum from clear to cloudy hot-Jupiter exoplanets without primordial water depletion. Nature 529, 59-62.
Stern SA, Bagenal F, Ennico K, Gladstone GR, Grundy WM,
McKinnon WB, and 145 co-authors. (2015) The Pluto system: Initial results from
its exploration by New Horizons. Science
350, 1815. Abstract: 2015Sci...350.1815S
Thomas PC, Tajeddine R, Tiscareno MS, Burns
JA, Joseph J, Loredo TJ, Helfenstein P, Porco C. (2015) Enceladus’s measured physical
libration requires a global subsurface ocean. Icarus 264, 37-47. Abstract: 2016Icar..264...37T
Unterborn CT, Dismukes EE, Panero WR. (2015) Scaling
the Earth: A sensitivity analysis of terrestrial exoplanetary interior models.
In press. Abstract: 2015arXiv151007582U
Volk K, Gladman B. (2015) Consolidating and crushing
exoplanets: Did it happen here? Astrophysical
Journal Letters, 806: L26. Abstract: 2015ApJ...806L..26V
